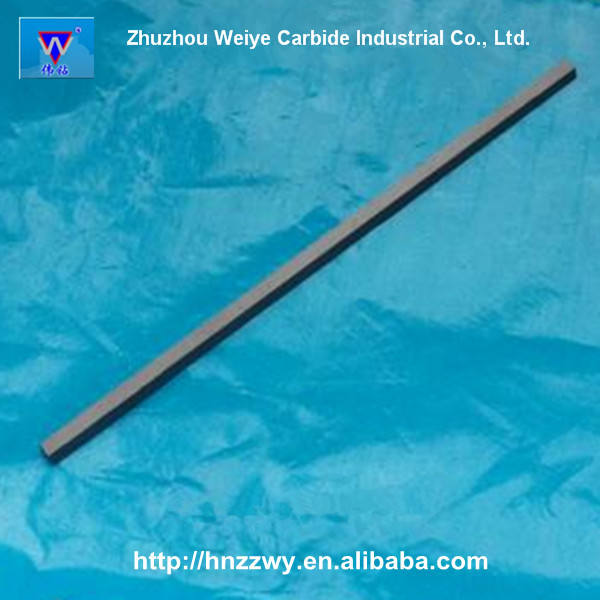

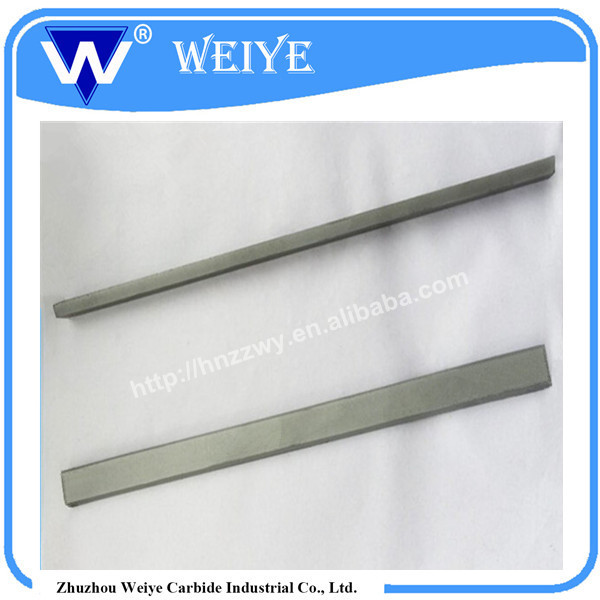

LONG LENGTH 330MM CARBIDE STRIP CUSTOMIZED TUNGSTEN CARBIDE STRIP
FOR WOODWORKING PAPER CUTTING
Carbide strips for crusher blades, woodworking cutter, Tissue Paper
Cutter
Customized Tungsten Carbide Strip for Crusher blades To Broken
Plastic
Tungsten carbide strip is used for woodworking cast iron cutting
tool. It can be used in many field such as woodworking, machining
of refractory alloys, stainless steel, high manganese steel, for
processing cast iron, non-ferrous metal and aluminum section bar,
etc.
Grade and Recommend Application:
| Grade | Hardness(HRA) | TRS N/mm2 | Density g/cm3 | Application recommend |
| YG6X | 92 | 1800 | 14.9 | it is can be used for the steel wire, non-ferrous metal wire or rod
die under the condition of less stress. |
| YG6 | 90.5 | 2000 | 14.9 | it is can be used for steel wire, non-ferrous metal and alloy bars
under 20mm diameter under greater stress condition, and can be also
used to pull tubing with a diameter of less than 10mm. |
| YG8 | 90 | 2200 | 14.7 | can be used in steel, non-ferrous metal and alloy bars and pipes,
can be also used in manufacturing machinery parts, tools and
vulnerable parts. |
| YG8.2 | 89 | 2000 | 14.6 |
| YG8L | 89 | 2000 | 14.6 |
| YG11 | 88.5 | 2600 | 14.4 | it can be used for high compression steel rod and steel pipes
drawing, and the top hammer, perforation and stamping die of
working under greater stress. |
| YG15 | 87 | 2600 | 14 |
| YL50 | 87 | 2600 | 14.4 |
| YG20 | 85 | 2800 | 13.6 | it can be used to make punching film tools, such as punching watch
parts, stamping battery shell, tooth paste mould, small size steel
ball, screw, nut, etc. |
| YG20C | 83.5 | 2800 | 13.6 | it can be used in standard parts bearings, tools and other
industries for cold forging, cold pressing, cold pressing mould
warhead and shell stamping die. |
| TL40.5 | 82 | 2800 | 13.3 |
| YB50 | 90.5 | 2600 | 14 | it has high hardness and strength, excellent wear resistance, and
can be used in the production of IC wireframe, plastic sealing
film, drawing die, nozzle, ultra-thin blade, etc. |
| YB20 | 92 | 2200 | 14.5 | with high hardness and strength, superior wear-resisting property,
suitable for low, medium speed electronic class progressive die and
punch, suitable for copper and aluminum thin sheet stamping. |
Type and Parameter:
| type | tolerance(mm) |
| L | B | H |
| 7×5×2.4 | ±0.5 | ±0.3 | ±0.4 |
| 9×5×2.4 | ±0.5 | ±0.3 | ±0.4 |
| 9×6×1.5 | ±0.5 | ±0.5 | ±0.3 |
| 12×5×2.4 | ±0.6 | ±0.3 | ±0.4 |
| 12×6×1.5 | ±0.6 | ±0.5 | ±0.3 |
| 12×10×2.2 | ±0.6 | ±0.5 | ±0.4 |
| 12×12×5 | ±0.6 | ±0.6 | ±0.4 |
| 14×10.5×2 | ±0.6 | ±0.6 | ±0.3 |
| 15×8×2 | ±0.6 | ±0.5 | ±0.3 |
| 17×5×2.4 | ±0.6 | ±0.3 | ±0.4 |
| 17×8.2×25 | ±0.6 | ±0.5 | ±0.8 |
| 20×5×5 | ±0.6 | ±0.3 | ±0.4 |
| 20×8×6 | ±0.6 | ±0.5 | ±0.5 |
| 25×20.5×5.2 | ±0.6 | ±0.8 | ±0.5 |
| 25.3×6.3×4 | ±0.8 | ±0.5 | ±0.4 |
| 27×6×4 | ±0.8 | ±0.5 | ±0.4 |
| 27×9×4 | ±0.8 | ±0.5 | ±0.4 |
| 27×14.5×14 | ±0.8 | ±0.6 | ±0.7 |
| 28×9.3×4 | ±0.8 | ±0.6 | ±0.4 |
| 30×12×5 | ±0.8 | ±0.6 | ±0.4 |
| 30×26×4 | ±0.8 | ±0.8 | ±0.4 |
| 35×5×3.5 | ±0.8 | ±0.3 | ±0.4 |
